ORANGE PACKAGE ROCK WOOL THERMAL INSULATION BOARD – TM Nexport

ORANGE PACKAGE ROCK WOOL THERMAL INSULATION BOARD

ORANGE PAKET® ROCK WOOL THERMAL INSULATION BOARD

ORANGE PACKAGE ROCK WOOL THERMAL INSULATION BOARD

Categories

✓
APPLICATION FIELD

Used under plaster on exterior facades for thermal and acoustic insulation and fire safety purposes.

+
REQUIREMENTS

Does not produce bacteria and microorganisms.
Helps reduce CO2 emissions, it is an ecological and environmentally friendly product.
Has water-repellent properties thanks to its saturated structure.
Does not contain vapor.
Resistant up to 1000°C, prevents the spread of fire.
Prevents sound and noise thanks to its fibers.

✓
TECHNICAL VALUES

Thickness (mm)	Dimensions (mm)	Kg/m²	Package (m²)	Quantity
30	600×1200	4,50	5,76	8
40	600×1200	6,00	4,32	6
50	600×1200	7,50	2,88	4
50	600×1200	9,00	2,16	3
80	600×1200	12,00	2,16	3
100	600×1200	15,00	2,16	3

* Density: 150 kg/m²

APPLICATION

Adhesive mortar is prepared before application.
Materials to be used are placed with the help of a level and special string.
The prepared adhesive mortar is applied to the back of the board in patches.
Depending on the facade surface to be bonded, the adhesive can also be applied to different points.
Boards with adhesive mortar applied are bonded one below the other and side by side towards the plinth profile.

1

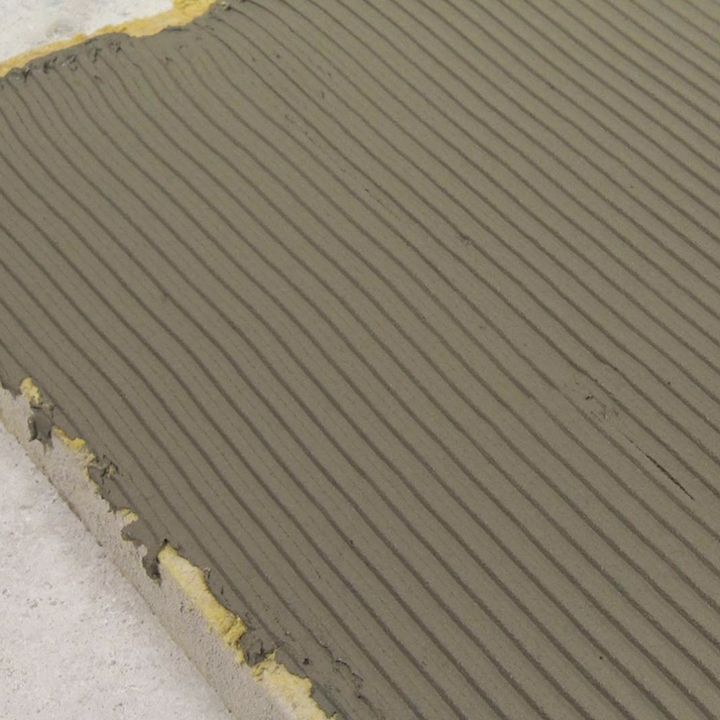

Stone Wool Thermal Insulation Board Application Step 1

2

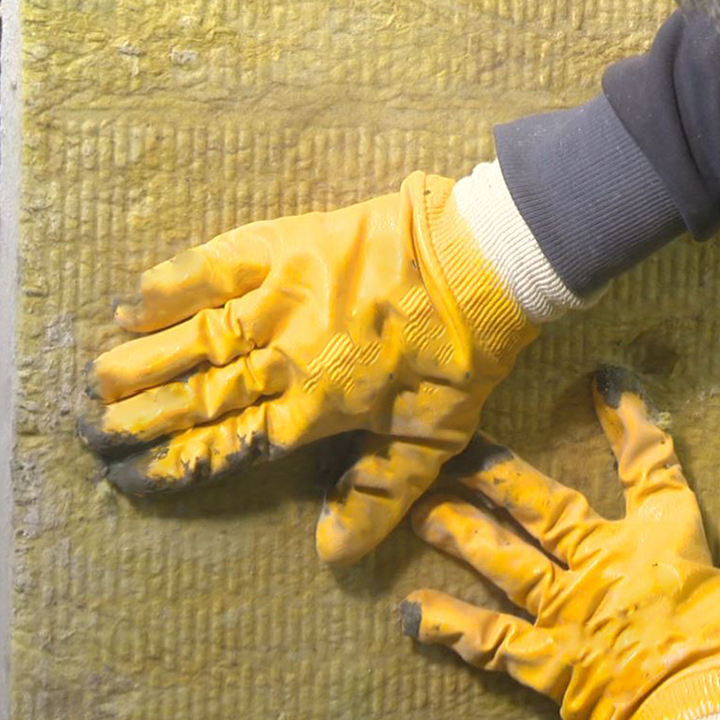

Stone Wool Thermal Insulation Board Application Step 2

3

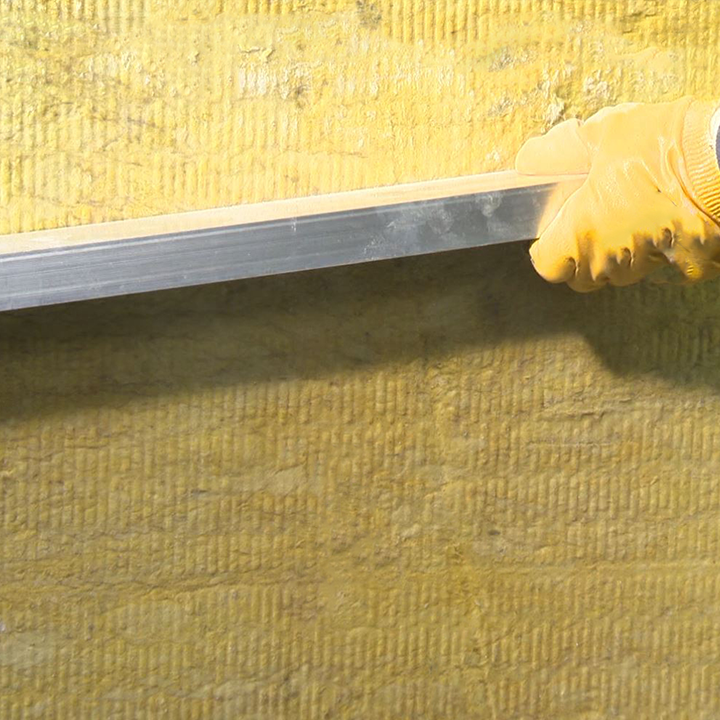

Stone Wool Thermal Insulation Board Application Step 3

📦

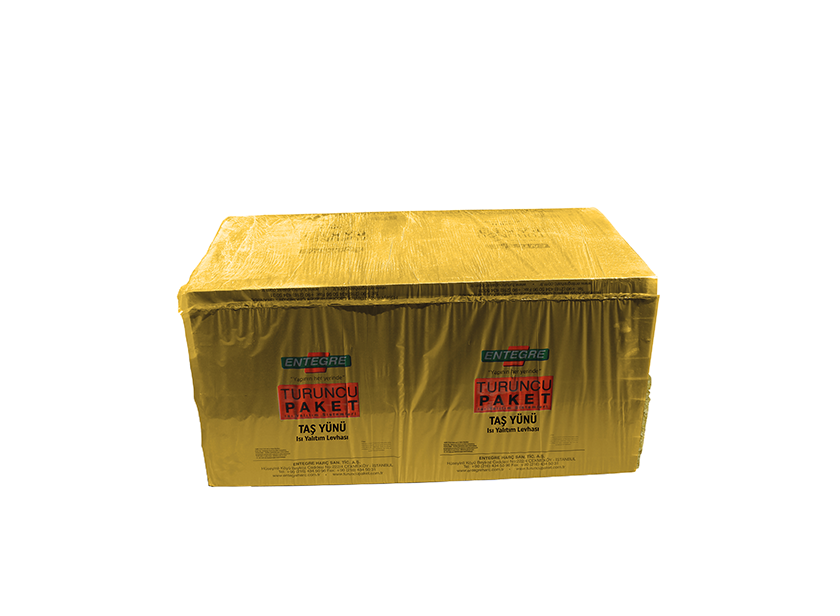

PACKAGING

150 x 50 cm PE Nylon
(1 package contains 4 boards.)

✓
CERTIFICATE OF CONFORMITY

Manufactured in accordance with TS EN 13162 standard.

×
