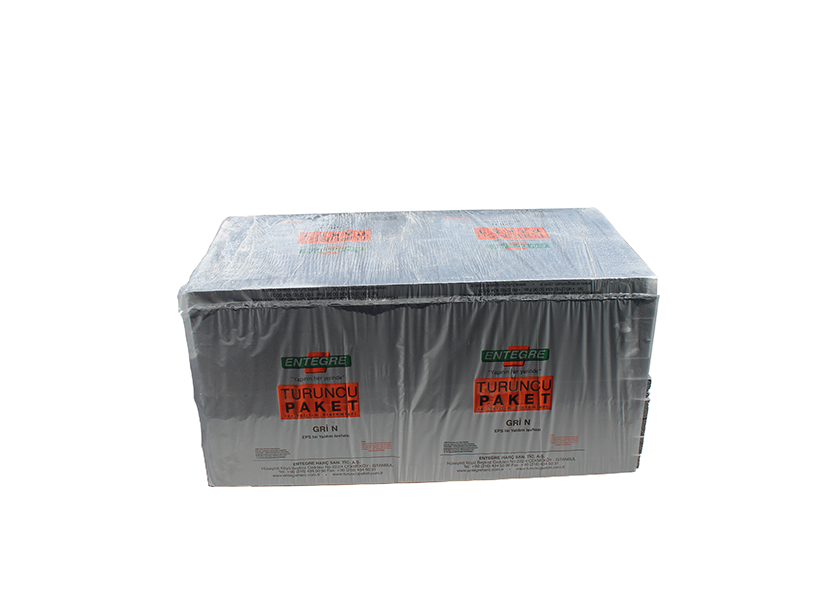

ORANGE PACKAGE ® EPS THERMAL INSULATION BOARD

EPS Thermal Insulation Board (Gray)

✓
APPLICATION FIELD

Used for external thermal insulation of building walls, in terraces and pitched roofs, in thermal insulation applications in cold storage facilities, especially in Passive House applications.

+
REQUIREMENTS

Offers 20% better thermal insulation performance compared to white thermal insulation boards.
No harmful gases to humans and the environment are used in the production stage.
Thanks to its high flexibility performance, it does not break or crumble when cut and can be easily applied to the wall.

✓
TECHNICAL VALUES

Type
EPS 70

Length Tolerance
L2 ± 2mm

Width Tolerance
W2 ± 2mm

Thickness Tolerance
T1 ± 1mm

Squareness Deviation Tolerance
SB2 ± 2mm

Surface Flatness Tolerance
P3 ± 3mm

Dimensional Stability at Specified Temperature and Relative Humidity Conditions
(DS70,-)1

Reaction to Fire Class
E

Dimensional Stability at 23°C 50% Relative Humidity
DS(N)2

Compressive Stress at 10% Deformation
CS(10)70

Bending Strength
BS115

Tensile Strength Perpendicular to Faces
TR100

Thermal Conductivity
0,032 m²K/W

* It is recommended to use at least 4 cm and above thicknesses in thermal insulation applications.

APPLICATION

SURFACE PREPARATION

The surface to be applied must be completely free of formwork oil, dust, paint and adhesion-reducing substances.
Before application, cracks and holes must be repaired with the same material or appropriate Entegre Repair Mortars.

MORTAR PREPARATION

Thermal insulation boards are placed inside the plinth profile and a straight line is ensured.

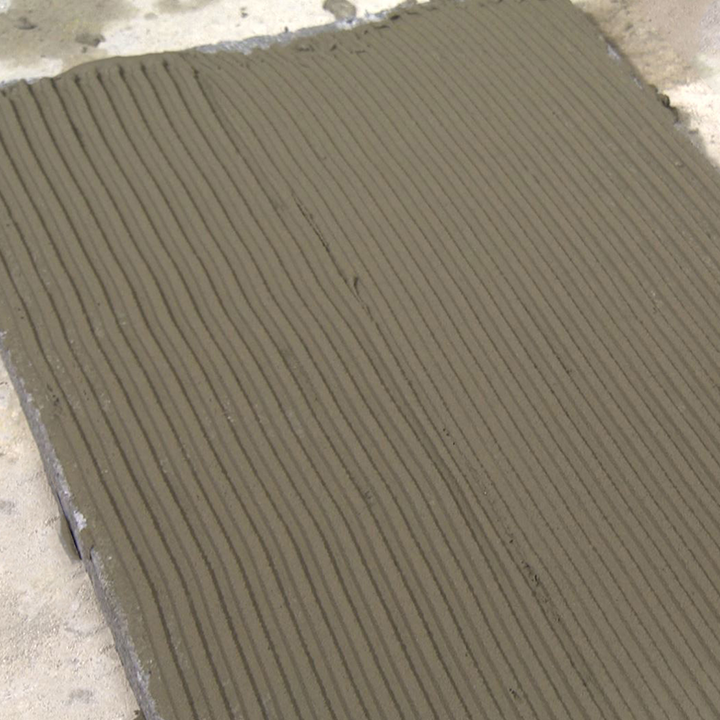

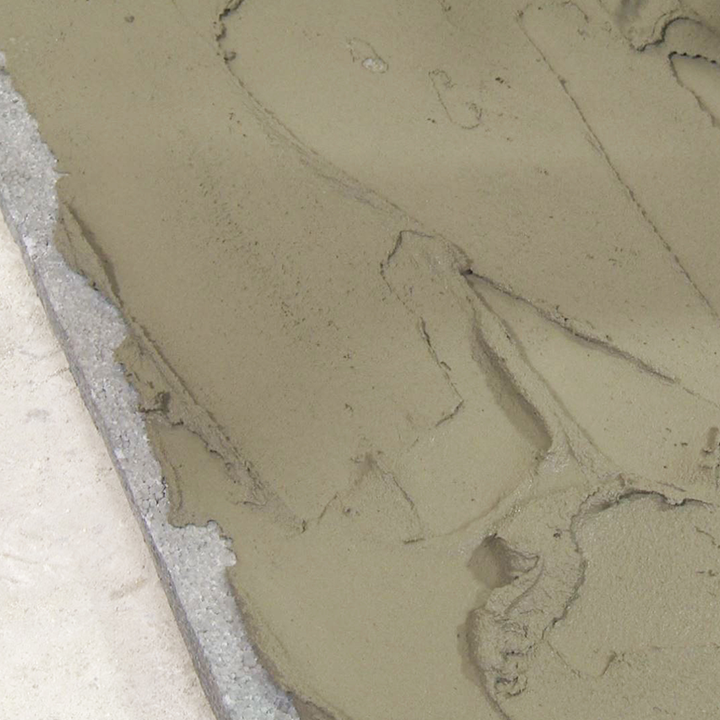

Adhesive mortar is applied to the surface of the board that will face the wall as a 5 cm wide, 2-3 cm thick strip on each edge and 2-3 point patches the size of a fist in the center.
The amount and height of the applied adhesive is adjusted according to the ground structure. Appropriate consumption is 5 kg/m².

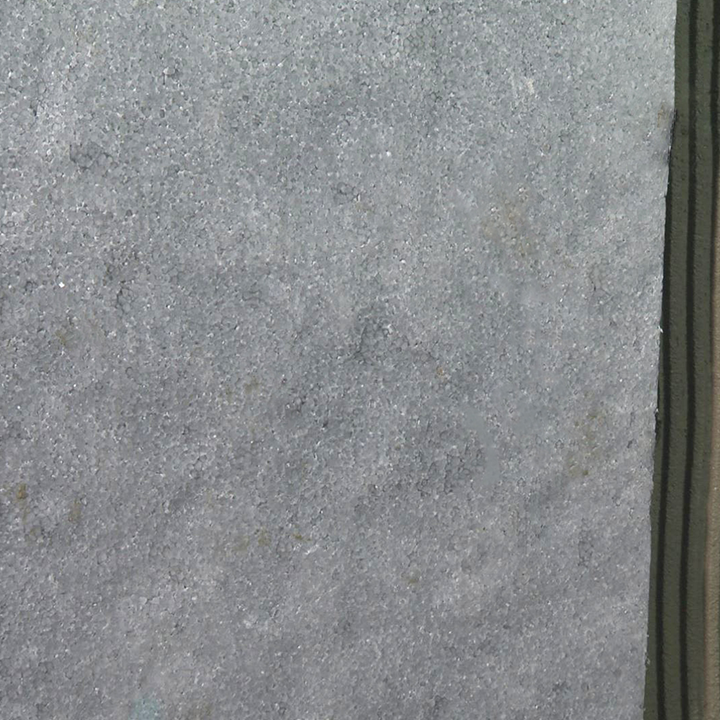

The Turuncu Paket thermal insulation board bonded to the wall is fixed to the exterior facade with dowels at the joints with other boards.
Corner profiles are placed before plastering.
Wait 1 day after mesh plaster application.
After the surface dries, exterior facade paint, Acrylic or Silicone-based ready-mixed colored, ready-to-use decorative plaster is applied on it.
