ORANGE PACKAGE ® ADHESIVE MORTAR

Termal Insulation Adhesive Mortar

✓
APPLICATION FIELD

Used for affixing polystyrene and STONEWOOL plates on surfaces such as rough and fine plaster, concrete, brick, etc.

+
REQUIREMENTS

Ideal for affixing XPS, EPS and STONEWOOL.
Provides a high adhesion performance thanks to the polymer additives.

✓
TECHNICAL VALUES

Dry Bulk Density, kg/m³
≥ 1000

Adhesive Strength, N/mm²
≥ 0,1

Average Compressive Strength, N/mm²
> 6

Average Bending Strength, N/mm²
> 2

Adherence Strength (Adhesion Force to the Bottom Layer), N/mm²
≥ 0,5

Adherence Strength (Adhesion Force to the Thermal insulation board), N/mm²
≥ 0,08

Water Absorption, 30 minutes later, g
≤ 5

Water Absorption, 240 minutes later, g
≤ 10

Class of Reaction To Fire
A1

Grain Size Over 1 mm
Max %1,0

APPLICATION

SURFACE PREPARATION

The surface of application shall always be free of materials such as form oil, paint, dust etc.
Moving parts with low adherence shall be moved away from the surface.
You may advance to application after dampening the surface.

PREPARATION of the MORTAR

A proper amount of water shall be put inside the mixing vessel (6-6.75 l water/25 kg bag).
Powder material shall be added and stirred with hand mixer at low speed.
After resting for 5 minutes, the plaster shall be stirred until achieving a homogeneous mixture.

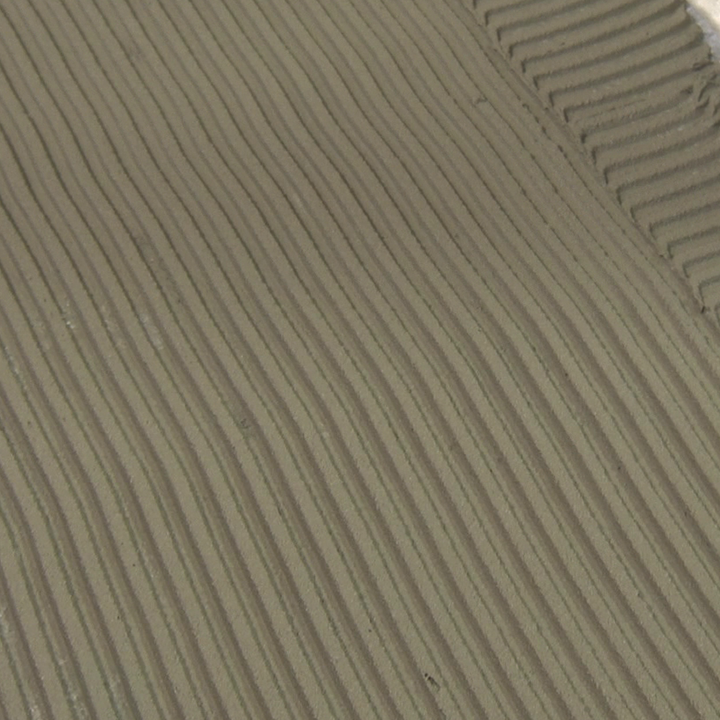

Mortar shall be applied to perimeter of the area where the thermal insulation board shall be affixed with a thickness of 1 cm using a trowel.
A suitable amount of mortar shall be placed to the points in the central areas.

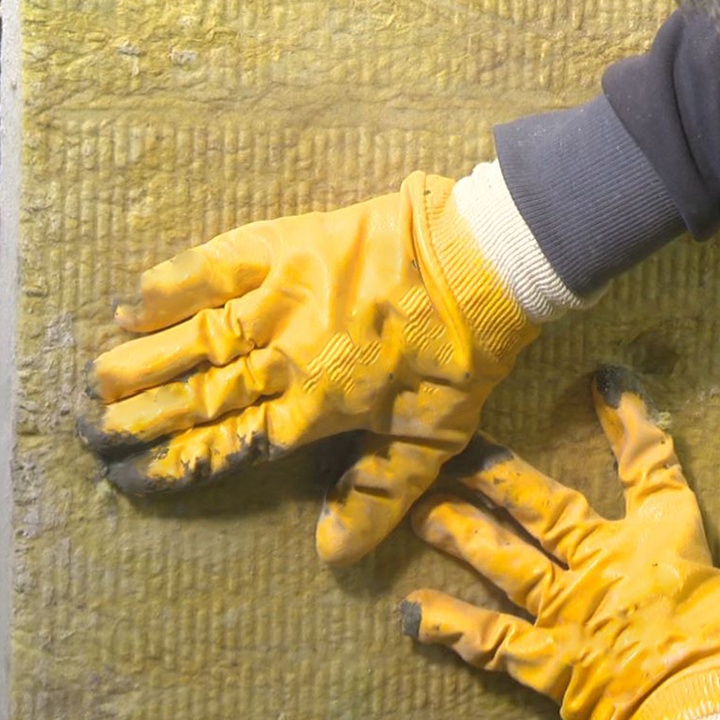

Plates are affixed to the floor with a suitable pressure. Mechanical plugging is performed when the mortar is cured adequately.

📊
CONSUMPTION

4,5 kg/m²

📦
PACKAGING

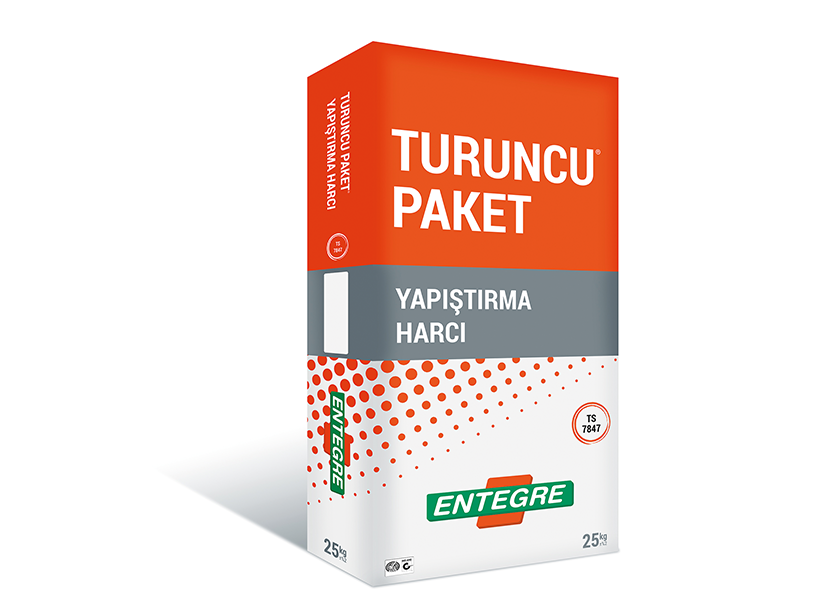

25 kg polyethylene-reinforced kraft paper bags,
(delivered in pallets or as sling-bags upon request.)

💾
STORING

1 Year Shelf Life*
* If stored in its original package without opening the package under dry, frost free conditions
(1 week after opening the package.)

⚠
RECOMMENDATION

No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
Mortar shall not be used again by mixing with water or dry mortar if its application time has expired.
We recommend that the application shall be performed between +5°C and +35°C.
TURUNCU PAKET® ADHESIVE MORTAR shall be protected against quick drying under windy weather conditions.
It shall not be applied on frozen surfaces.
Do not apply under direct sunlight.
Do not go beyond the application field and the rules.
Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
For detailed information, please request the security data sheet.
Contact us for your technical questions and for your questions about all other application conditions.

✓
CERTIFICATE OF CONFORMITY

TS 13566 / June 2013

Ministry of Public Works Pos. No: 04,480
