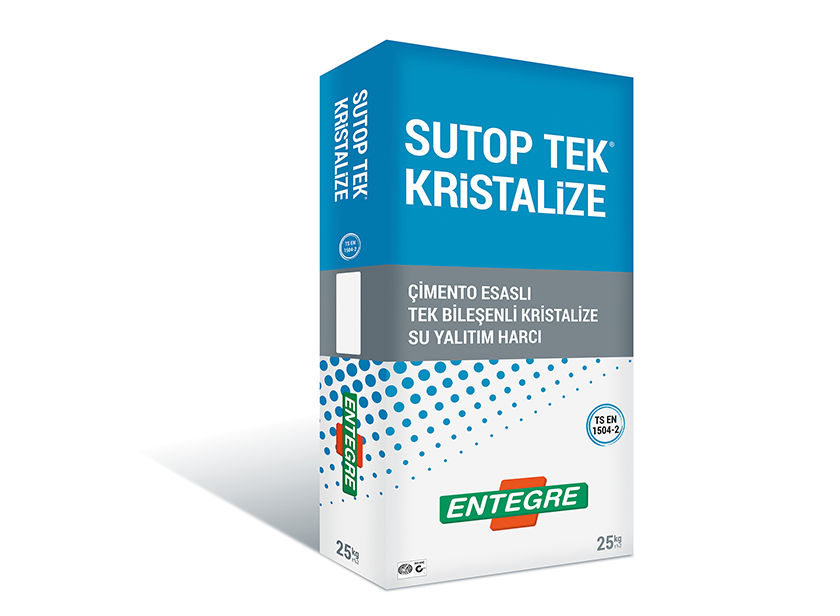

SUTOP TEK ® CRYSTALLINE

Cement-Based Single Component Crystalized Water Insulation Mortar

✓
APPLICATION FIELD

Cement based crystallized water insulation material used on cement-based plasters, screeds and exposed concrete for water insulation from negative side on retaining walls, elevator shafts, foundations and external walls of pools etc. against leaks and surface waters on horizontal and vertical surfaces in interior and exterior areas.

+
REQUIREMENTS

It may be easily and rapidly applied.
Resistant against water pressure from negative direction.
Creates a crystalline structure on the capillary hole inside the concrete, and provides water impermeability by blocking the hole.
Hygienic.
Suitable for use on surfaces applied with cement-based plaster and screed.
Prevents unpressurised and weak water leaks by preventing the humidity permanently.
Protects surfaces against destructive effects of the humidity and moisture.
Resistant against excessive weather conditions.
Does not contain soda and chloride, protects reinforcement in the concrete against corrosion.

✓
TECHNICAL VALUES

Water Vapour Permeability
Class I

Shear Tensile Adhesive Strength
With no traffic load / Rigid

Class of Reaction To Fire
A1

Adhesive Strength, N/mm²
≥ 1

Capillary Water Absorption and Water Permeability (kg/m²·h⁰·⁵)
Max. 0,1

Powder Density, g/cm³
1300 ± 200

Application Time, minutes
Approx. 50 min.

APPLICATION

SURFACE PREPARATION

The surface of application shall be free of pores and cracks.
The surface shall always be free of materials such as form oil, paint, dust etc.
Parts on the surface (iron, wood, etc.) shall be removed and these hole shall be filled with appropriate Entegre Repair Mortars.
In case of active water leaks, these shall be stopped with WATERFIX®.
You may advance to application after dampening the surface.

PREPARATION of the MORTAR

A proper water amount shall be put inside the mixing vessel (9 l of water/25 kg of powder). SUTOP TEK® CRYSTALLINE shall be added to water, and stirred with hand mixer until the lumps are removed.
After resting for 5 minutes, the mortar shall be stirred until achieving fluid characteristics again.
After dampening the application surface with water, fluid mortar shall be applied on the surface that may contact with water using a brush.
It shall be applied as 2 or 3 coats, and so that the direction of application is perpendicular to the previous application.
Wait at least for 3 hours between coats depending on the temperature, and perform dampening procedure between application of coats when required.
We recommend you to stir the product continuously during application.
Walls and surfaces to be walked on shall be coated with a final coat such as screed, ceramic, etc.
Surface shall be kept dampened and it shall be prevented from drying for 5 days after application.
It shall be protected against external factors such as direct sunlight, wind, frost, etc.

📊
CONSUMPTION

1.5-2.0 kg/m² for single coat

(Application at proper surface and ambient conditions is taken as a reference. It may differ as per surface specifications and application conditions.)

📦
PACKAGING

25 kg polyethylene-reinforced kraft paper bags,
(delivered in pallets or as sling-bags upon request.)

💾
STORING

6 Months Shelf Life*
* If stored in its original package without opening the package under dry, frost free conditions
(1 week after opening the package.)

⚠
RECOMMENDATION

No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
Plaster shall not be used again by mixing with water or dry plaster if its application time has expired.
We recommend that the application shall be performed between +5°C and +35°C.
SUTOP TEK® CRYSTALLINE shall be protected against effects such as sunlight, wind, rain and frost, etc. within the first 24 hours after application.
It shall not be applied on frozen surfaces.
Do not apply under direct sunlight.
Do not go beyond the application field and the rules.
Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
For detailed information, please request the security data sheet.
Contact us for your technical questions and for your questions about all other application conditions.

✓
CERTIFICATE OF CONFORMITY

Complies with TS EN 1504-2 / April 2008 standard
