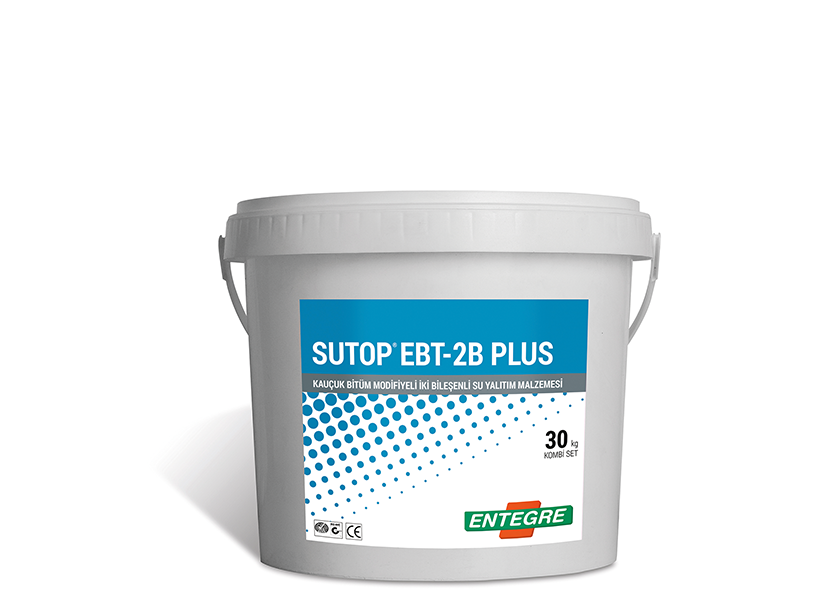

SUTOP® EBT-2B PLUS

Rubber-Bitumen Modified Double Component Water Insulation Material

SUTOP® EBT-2B PLUS
Categories


✓
APPLICATION FIELD

It is a two-component bituminous water insulation material that is used to protect the underground parts of buildings against water pressure, humidity and water leakage, and temporary and continuous water pressure.

It is used for bonding of light insulation panels in basement curtain walls, on foundations and sub-foundations, in wet areas such as kitchens, bathrooms and laboratories, and on balconies and terraces.

It may be applied on exposed concrete, cement based plasters and screeds, walls with a fixed surface made of limestone, bricks and briquettes and old bituminous surfaces.

+
REQUIREMENTS

  • Has two components.
  • Based on rubber-bitumen modification.
  • Features high elasticity and crack bridging.
  • Does not contain solvents, it is environment-friendly.
  • Ready to use and easy to apply on the surface.
  • May be applied on dry and lightly wet surfaces.
  • Does not sag on vertical surfaces.

✓
TECHNICAL VALUES

Colour
Brown, Black
Consistency
Paste like
Density
1.10 ± 0.01 kg/l
pH
11,5-12,5
Viscosity
50 d Pa.s
Solid Content (Component A)
53.0 % ± 1.0 %
Solid Content (Component A+B)
66.0 % ± 1.0 %
Temperature of Application Floor
+5°C / +30°C
First Curing Period
4-6 hours
Full Curing Period
1-3 days
Crack bridging, mm
2
Elongation, %
> 125




APPLICATION

SURFACE PREPARATION

  • The surface of application shall be free solid, clean, free of dust and level.
  • The surface shall always be free of materials such as form oil, paint, dust etc., and shall be fully cured.
  • Any cracks and holes on the surface shall be filled before application using DOLTEK® or DOLFIN®.
  • SUTOP® EBT-PRIMER shall be applied to the surface before application to provide better adhesion, and then you may advance to application after waiting for its drying.

PREPARATION of the MORTAR

  • Component B shall be added to fluid component A, and it shall be stirred until a homogeneous mixture is obtained (approximately 5 minutes) using a mixer with a speed of 400-500 rpm.
  • Mixture shall be used without waiting for long, and it shall be consumed within 1-2 hours. It shall be applied in 2 coats minimum.
  • Second coat shall be applied when the first coat is completely dried.
  • Recently applied coating shall protected against freezing at least for 72 hours.
  • Primer shall be applied if adhesion may be problematic.
  • Application and drying time may increase or decrease depending on temperature.
  • A net may be used as a carrier against critical and heavy load pressures, if required.
  • If you want cover SUTOP® EBT-2B PLUS with any protective layer, then silica sand shall be scattered over the final coat before the surface is dried.
  • Sands are cleaned by sweeping when the surface has dried, and then it shall be possible to apply coatings such as screed, plaster, gypsum on the cleaned surface.
  • After ensuring this protection, you may affix ceramics / tiles with ceramic adhesive.

1
SUTOP EBT-2B PLUS Image 1

2
SUTOP EBT-2B PLUS Image 2

3
SUTOP EBT-2B PLUS Image 3

📊
CONSUMPTION

Approx. 4.5 kg/m² dry film thickness of 3 mm

(May vary as per surface specifications and application conditions.)

📦
PACKAGING

30 kg Combi Set,
Component A: 22 kg fluid
Component B: 8 kg polyethylene bag

💾
STORING

1 Year Shelf Life*
* If stored in its original package without opening the package under dry, frost free conditions

⚠
RECOMMENDATION

  • It shall be protected against water, frost and extreme weather conditions.
  • Broken or opened packages shall be closed immediately and consumed as soon as possible.
  • Never apply in wet weather and on wet floors.
  • It shall not be applied on frozen surfaces.
  • Filling shall be performed before drying.
  • It shall be protected from the impacts using appropriate drainage plates and heat insulation boards before performing the filling and applying the protective concrete.
  • Suitable for use on applications up to a depth of 20 m (2 bar).
  • We recommend that the application shall be performed between +5°C and +30°C.
  • Storage conditions shall be considered while it is transported.
  • Do not apply under direct sunlight.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • If you want to cover the surface of the bituminous layer with any coating such as ceramic, tiles, etc., it is recommended to protect the bituminous surface with protective layers before advancing to the application. Contact our technical department to get information on this subject.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.

✓
CERTIFICATE OF CONFORMITY

Complies with TS EN 15814 standard.
