POWERFiX®

Cement-Based High Performance Structural Repair Mortar

POWERFiX®
Categories


✓
APPLICATION FIELD

Used for repairing of beams, columns, foundations, retaining walls and step edges on cracked and worn concrete surfaces.

+
REQUIREMENTS

  • Applied easily.
  • Allows application up to a thickness of 5-7 cm.
  • High strength.
  • May be applied both on interior and exterior surfaces.

✓
TECHNICAL VALUES

Class
R3
Mortar Type
PCC
Adhesive Strength, N/mm²
≥ 1,5
Compressive Strength, N/mm²
≥ 25
Modulus of Elasticity, GPa
≥ 15
Chloride Content, %
≤ 0,05
Limited Contraction/Expansion, N/mm²
≥ 1,5
Capillary Water Absorption, kg/m²·h⁰·⁵
≤ 0,5
Reaction to Fire
A1




APPLICATION

SURFACE PREPARATION

The surface of application shall always be free of materials such as form oil, paint, etc.

Moving parts with low adherence shall be moved away from the surface.

Corrosion on metal parts shall be removed and contact with mortar shall be prevented using an anti-corrosion agent.

You may advance to application after dampening the surface.

PREPARATION of the MORTAR

A proper amount of water shall be put inside the mixing vessel (3.75-4.25 l water/25 kg bag).

Powder material shall be added and stirred with hand mixer.

After resting for 5 minutes, the plaster shall be stirred until achieving a homogeneous mixture.

The mortar prepared shall be applied with a thickness of 5-7 cm.

If you require more thickness, you shall ensure that the first coat is hardened before applying the second coat.

Smoothness of the surface is ensured by finishing trowel on applications on wider surfaces.

IMAGES

1

POWERFIX Image 1

2

POWERFIX Image 2

3

POWERFIX Image 3

CONSUMPTION

Approx. 17,0 kg/m² for 1 cm of thickness

✓
PACKAGING

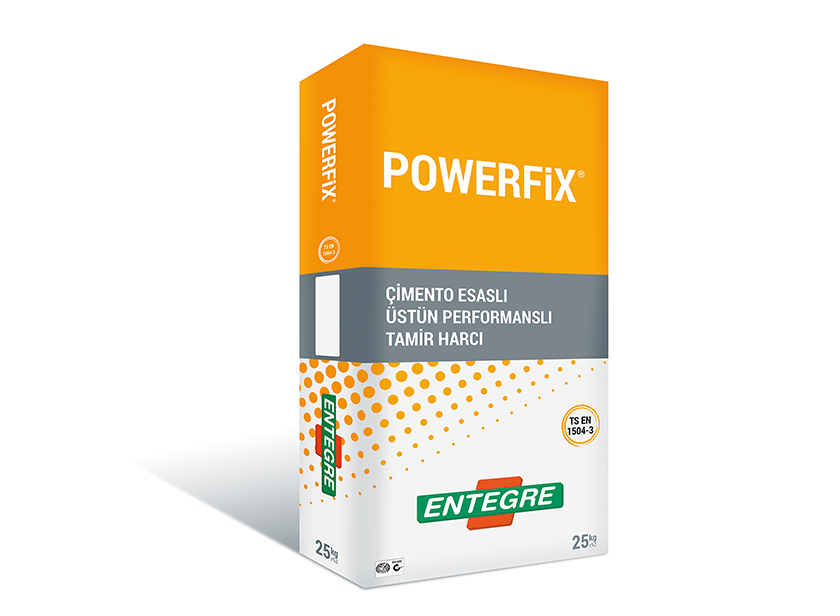

25 kg Paper Bag, (delivered in pallets or as sling-bags upon request.)

STORING

1 Year Shelf Life*

* If stored in its original package without opening the package under dry, frost free conditions

(1 week after opening the package.)

✓
CERTIFICATE OF CONFORMITY

TS EN 1504-3 April 2008 Complies with R3 Class.

Ministry of Public Works Pos. No: 04.476/E2

TSE Logo

CE Logo

TCL Logo

✓
RECOMMENDATION

  • No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
  • Plaster shall not be used again by mixing with water or dry plaster if its application time has expired.
  • Surface shall be watered in specific intervals within 3 days after the application to ensure the strength of plaster depending on the weather conditions.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • POWERFIX® shall be protected against quick drying under windy weather conditions.
  • It shall not be applied on frozen surfaces.
  • Do not apply under direct sunlight.
  • Do not go beyond the application field and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • For detailed information, please request the safety data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.

×
