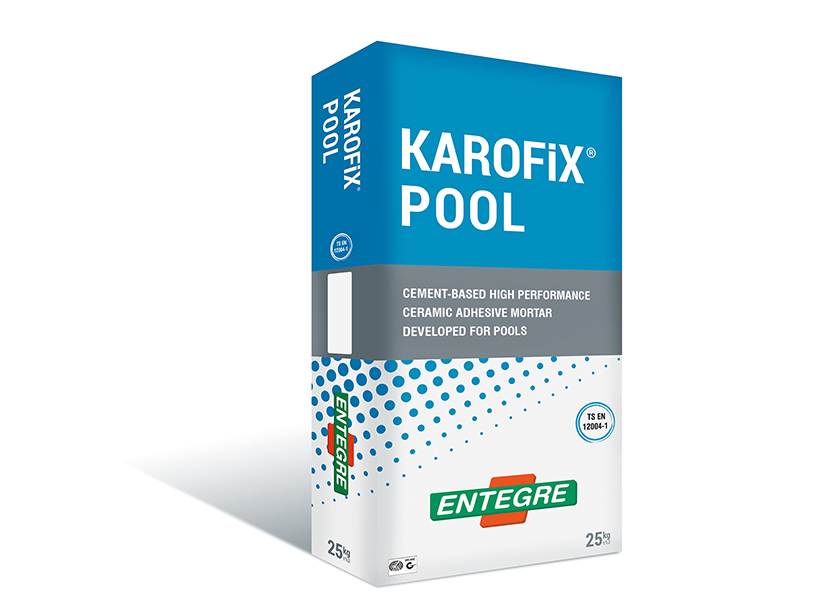

KAROFiX® POOL

Cement-Based High Performance Ceramic Adhesive Mortar Developed For Pools



APPLICATION FIELD

Used for coating of humid areas such as swimming pools, baths, saunas, spa centers, water tanks, terraces, roofs etc.

May also be used for coatings such as ceramic, porcelain ceramic, granite, etc. at all sizes on horizontal and vertical surfaces in the interior/exterior areas thanks to its high performance.

+
REQUIREMENTS

  • Suitable to be used in areas with differences in temperatures.
  • Resistant to water and humidity.
  • Reduced sliding properties.
  • Provides a good performance with its elasticity.
  • It has polymer additives.
  • Provides high performance while affixing ceramics over ceramics.


TECHNICAL VALUES

Period for Keeping Uncovered: Tensile Adhesion Strength, N/mm² (after 30 minutes minimum), (EN 1346)
≥ 0,5
Application Time, Hours
< 2
Adherence Strength / Under Dry Conditions, N/mm² (EN 1348)
≥ 1
Adherence Strength / Under Wet Conditions, N/mm² (EN 1348)
≥ 1
Adherence Strength / Under Hot Conditions, N/mm² (EN 1348)
≥ 1
Adherence Strength / Under Cold Conditions, N/mm² (EN 1348)
≥ 1
Sliding, mm (EN 1308)
≤ 0,5
Reaction to Fire
A1




APPLICATION

SURFACE PREPARATION

  • The surface shall always be free of form oil, dust, paint and materials that reduce adherence.
  • Repair of the cracks and holes shall be made using appropriate Entegre Repair Mortars before application.
  • Application surface shall be dampened with water, if required.
  • PRIMEL 100® shall be applied before application on surfaces that are not resistant to moisture such as plasterboard, cardboard, gypsum plasters etc. and PRIMEL 600® BETOKONTAK shall be applied for applications of ceramics over ceramics, and the fixing operation is started when drying is complete (after approx. 24 hours).

PREPARATION of the MORTAR

  • Water shall be put to the mixing vessel first, then KAROFIX® POOL shall be added (5.75-6.25 l water/25 kg bag) and it shall be stirred until the lumps are removed.
  • Stop for 5 minutes, and stir again to achieve a homogeneous mixture.
  • The mortar prepared shall be applied up to a thickness of 8 mm, it shall be combed and ceramic shall be fixed.
  • For a good adhesion, application shall be performed by applying force on the surface with a rubber hammer.
  • Double sided fixing shall be used for coatings greater than 3,600 cm².


APPLICATION VIDEO

For more information, please watch our application video.

1
KAROFIX POOL Image 1

2
KAROFIX POOL Image 2

3
KAROFIX POOL Image 3

📊
CONSUMPTION

Applies for application on a single side.

Comb Size Consumption (kg/m²)
3 2-3
4 3-4
6 4-5
8 5-6

📦
PACKAGING

25 kg polyethylene-reinforced kraft paper bags

💾
STORING

1 Year Shelf Life*
* If stored in its original package without opening the package under dry, frost free conditions
(1 week after opening the package.)


RECOMMENDATION

  • No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
  • Mortar shall not be used again by mixing with water or dry mortar if its application time has expired.
  • You shall wait at least 24 hours for joint application.
  • May be used for coatings with water absorption of ≤0.5 and > 0.5 (ceramic, granite and porcelain ceramic, marble, etc.).
  • Coating areas specified below are suitable for an ideal application:

    • On interior walls and interior/exterior floors: Coating area ≤3600 cm²
    • On exterior walls: Coating area ≤1200 cm² (12m height)
    • On exterior walls: Coating area ≤2000 cm² (8m height)
    • On exterior walls: Coating area ≤3600 cm² (4m height)
  • KAROFIX® POOL White is recommended for light coloured applications.
  • We recommend that the application shall be performed between +5°C and +35°C.
  • For an ideal application, coating material shall be fixed to the mortar applied on the surface within 35 minutes.
  • We recommend you to take additional mechanical precautions for heights over 8m.
  • It shall not be applied on frozen surfaces.
  • Do not apply under direct sunlight.
  • Do not go beyond the application surface and the rules.
  • Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.


CERTIFICATE OF CONFORMITY

TS EN 12004-1 / April 2017 Complies with C2TE T Class.

C2: Cement-based adhesive enhanced with additional characteristics

T: Reduced sliding properties

E: Extended period for keeping uncovered

Ministry of Public Works Pos. No: 04.013/1
