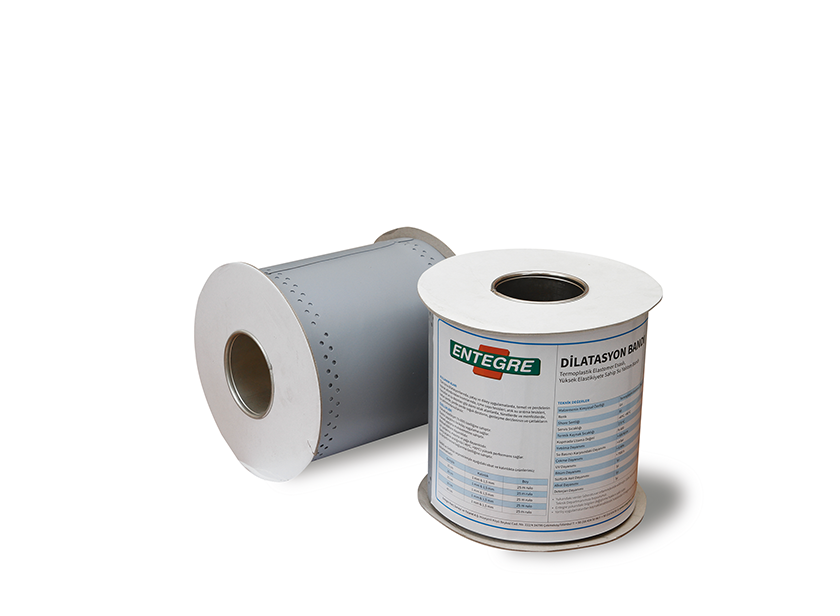

INTEGRATED BAND DILATION

Thermoplastic Elastomer Based Water Insulation Tape With High Elasticity



APPLICATION FIELD

Used in dilatations of whole buildings, in vertical or horizontal applications, on the underground parts of foundations and curtains, in permanently wet areas such as drinking water facilities, waste water treatment plants, pools and water tanks, on tunnels and vents, and for water insulation of raft-curtain, curtain-curtain cold joints, expansion joints and cracks.

+
REQUIREMENTS

  • Has high elasticity (600%). Allows easy application with epoxy adhesive. Has high adhesion strength.
  • Resistant against plant roots.
  • Resistant against UV rays, fuel oil and oil.
  • Provides high performance at wide temperature range (-40°C, +90°C).
  • Provides the feature of combining to each other when the temperature increases.
  • We offer our products with the following sizes and thickness values with the option for selecting between porous and non-porous.


TECHNICAL VALUES

Chemical Properties of the Material
Thermoplastic Elastomer (TPE)
Colour
Grey
Shore Hardness
80
Service Temperature
-40°C, +90°C
Temperature of Thermal Source
270°C
Breaking Strain
600 %
Tearing Strength
> 600 N/cm
Strength Against Water Pressure
> 8 bar
Tensile Strength
> 6 MPa
UV Strength
> 7500 h
Bitumen Strength
Good
Sulphuric Acid Strength
Good
Alcohol Strength
Good
Detergent Strength
Good




APPLICATION

1
INTEGRATED BAND DILATION Image 1

2
INTEGRATED BAND DILATION Image 2

3
INTEGRATED BAND DILATION Image 3

📦
PACKAGING

25 m roll bobbin

Our product is available in the following sizes and thicknesses with porous and non-porous options:

Width Thickness
15 cm 1 mm & 1,5 mm
20 cm 1 mm & 1,5 mm
25 cm 1 mm & 1,5 mm
30 cm 1 mm & 1,5 mm
40 cm 1 mm & 1,5 mm


CERTIFICATE OF CONFORMITY

TSE Logo

CE Logo

TCL Logo

×
