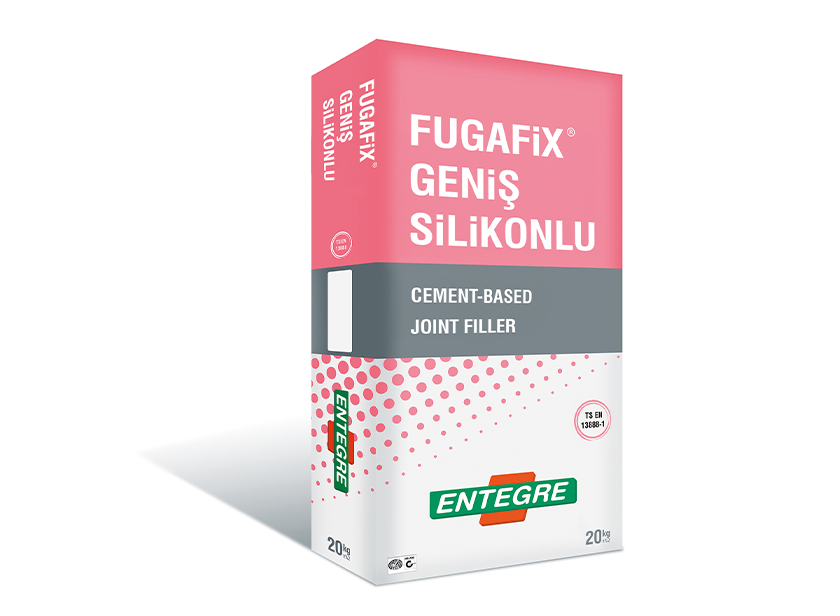

FUGAFiX ® WIDE SILICONE

Silicone enhanced, high performance cement based ready mix wide elastic joint filler

✓
APPLICATION FIELD

Used for filling of 6-15 mm joints of ceramic and tile coating materials on horizontal and vertical floors in interior and exterior areas in dry and medium wet environments.

+
REQUIREMENTS

Applied easily.
It has a smooth appearance.
Used conveniently on interior and exterior surfaces both vertically and horizontally.
Water-repellent in high rate.
Resistance against water and freeze.

✓
TECHNICAL VALUES

Application time, hours
< 2

Water absorption, after 30 minutes, gr (EN 12808-5)
≤ 2

Water absorption, after 240 minutes, gr (EN 12808-5)
≤ 5

Shrinkage, mm/m (EN 12808-4)
≤ 3

Flexural Strength (after 28 days), N/mm² (EN 12808-3)
≥ 2,5

Flexural Strength (after freeze/thaw cycles), N/mm² (EN 12808-3)
≥ 2,5

Compressive Strength (after 28 days), N/mm² (EN 12808-3)
≥ 15

Compressive Strength (after freeze/thaw cycles), N/mm² (EN 12808-3)
≥ 15

Abrasion Resistance, mm³ (EN 12808-2)
≤ 1000

APPLICATION

SURFACE PREPARATION

Scrape any dust, chipping, construction-cement waste that may be present inside the joint hole and clean with a brush before application. Joint hole shall be dampened with water before application, if required.

📊
CONSUMPTION

Consumption Amount (g/m²)*

Ceramic Size (cm)	Joint Gap (mm)	6 mm (g/m²)	10 mm (g/m²)	15 mm (g/m²)
10×20	–	1000	1730	2590
15×15	–	920	1530	2300
15×20	–	800	1340	2000
20×20	–	690	1150	1730
20×25	–	1000	1650	2490
20×30	–	920	1530	2300
33×33	–	670	1110	1680

📦
PACKAGING

It is shipped in 25 kg kraft bags, on pallets.

💾
STORING

Storage period: It is recommended to be consumed in 6 months from the date of production if stored in its original package without opening the package under dry, frost free conditions and is stacked as maximum 8 bags, and in 1 week after opening the package.

Packages shall be tightly closed when it is not used.

⚠
RECOMMENDATION

No other materials (lime, cement, gypsum, etc.) shall be added to the prepared mortar.
Plaster shall not be used again by mixing with water or dry plaster if its application time has expired.
You shall wait at least 24 hours for joint application after fixing operation.
We recommend that the application shall be performed between +5°C and +35°C.
It shall not be applied on frozen surfaces.
Do not apply under direct sunlight.
PRIMEL 300® shall be used for cleaning of the contaminated joints.
To prevent damage to the coloured joint fillings, do not use strong chemical cleaning agents such as lime remover, hydrochloric acid, etc.
Do not go beyond the application field and the rules.
Do not inhale it directly. Wash your eyes with plenty of water in case of contact with eyes, seek medical attention if required.
For detailed information, please request the security data sheet.
Contact us for your technical questions and for your questions about all other application conditions.
